Note: This product is no longer available, is not on stock anymore and will not be produced anymore. Please contact us should you have any questions.

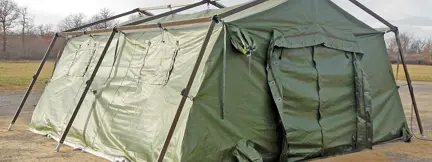

TAM Folding Frame Series
The Aluminium Frame TAM tents are designed for long-term field camps and hospital use, and can withstand harsh climate conditions.
A foldable long-term camp solution
Our TAM Folding Frame Series tents consist of a robust, aluminium alloy exo-frame with ruggedized hinges and a PVC cover that is hung from the frame.
Quick setup, no tools required
The frame structure contains an integrated rope and pulley system carried within the frame, which facilitates deployment and dismantling and allows for compact transport packing. Fitted with hinges, the complete frame can be collapsed and folded for storage in very little time, without the need for power or specific tools.
Single stage deployment
The shelter design allows for a single stage deployment of the outer skin, integrated flooring and inner liner simultaneously. Once hung to the frame, the outer skin and inner liner naturally stretch into position.
Heavy-duty tent structure
Being a robust, solid tent structure, a TAM Folding Frame tent can handle a wind load of 100 km/h and a snow load of 50 kg/m². The main outer skin of the shelter is manufactured using heavy-duty polyester fabric coated on either side with a fully waterproof, anti-fungus and UV resistant PVC layer. Our TAM Folding Frame tents are available in the colours Sand, Green and White.
Specifications and options
There are four different standard models available (excluding Electric Opening Apse(s):
Tech specs
Dimensions
- TAM 18
- 6m x 3m x 3.25m, 18 m² surface area
- TAM 36
- 6m x 6m x 3.25m, 36 m² surface area
- TAM 54
- 6m x 9m x 3.25m, 54 m² surface area
- TAM 70
- 6m x 11.5m x 3.25m, 69 m² surface area
Options
Options
- Lighting
- Insulation liner
- Flysheet
- Inner partitioning
- Rigid flooring
- Custom-built container/vehicle interface
- HVAC
- Banner with logos
Safety
Safety
- Please contact our specialist.
- Tried & tested, proven quality
- Instantly deployable
- Short installation time
- Optimized based on experience and feedback
- Further customization possible
- For temporary AND permanent use
